How To Assemble
Always wash your hands before using your pump. Make sure all parts are clean before use.
1. Insert the duckbill valve on to the pump body

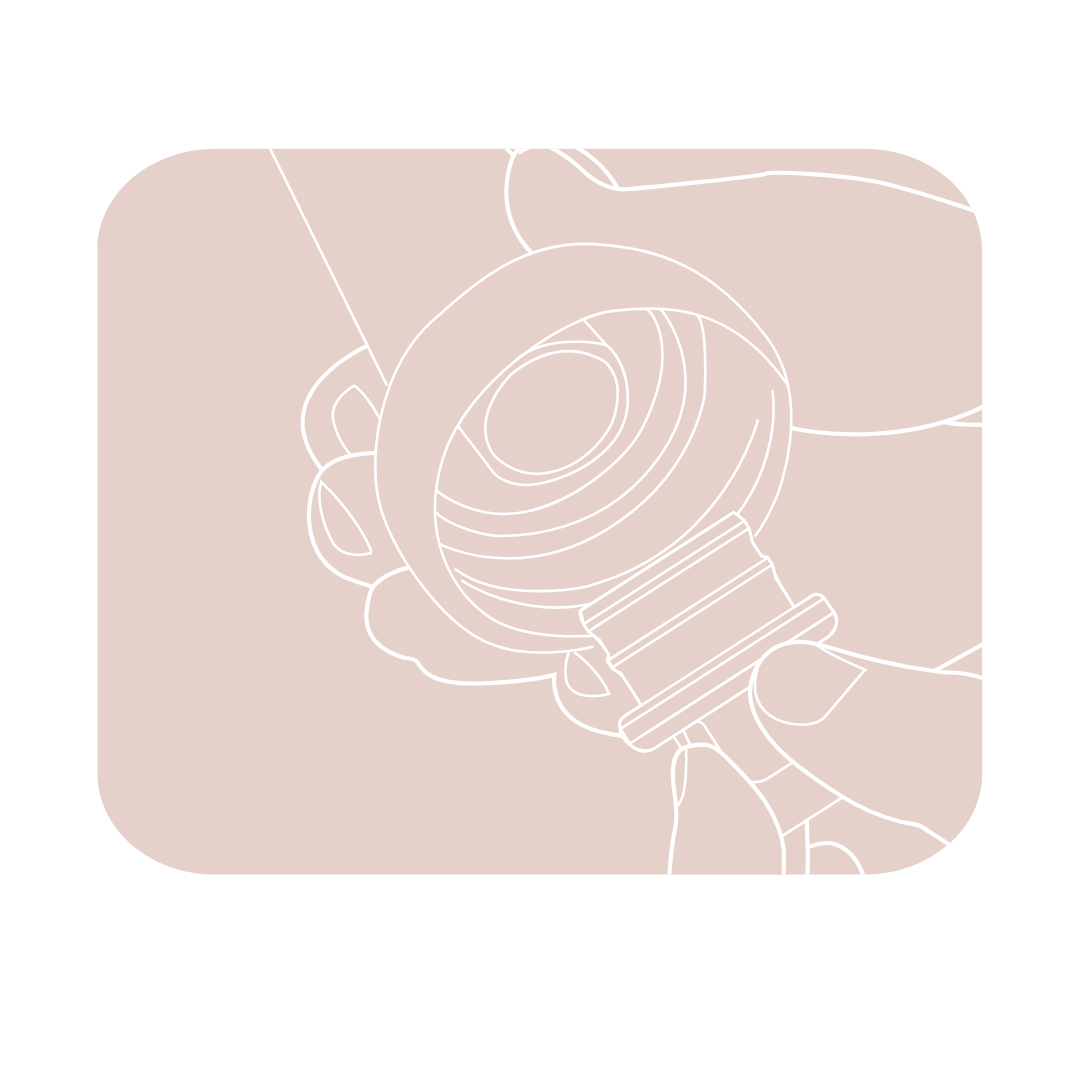

2. Attach breast shield to the pump body
3. Insert diaphragm into pump body

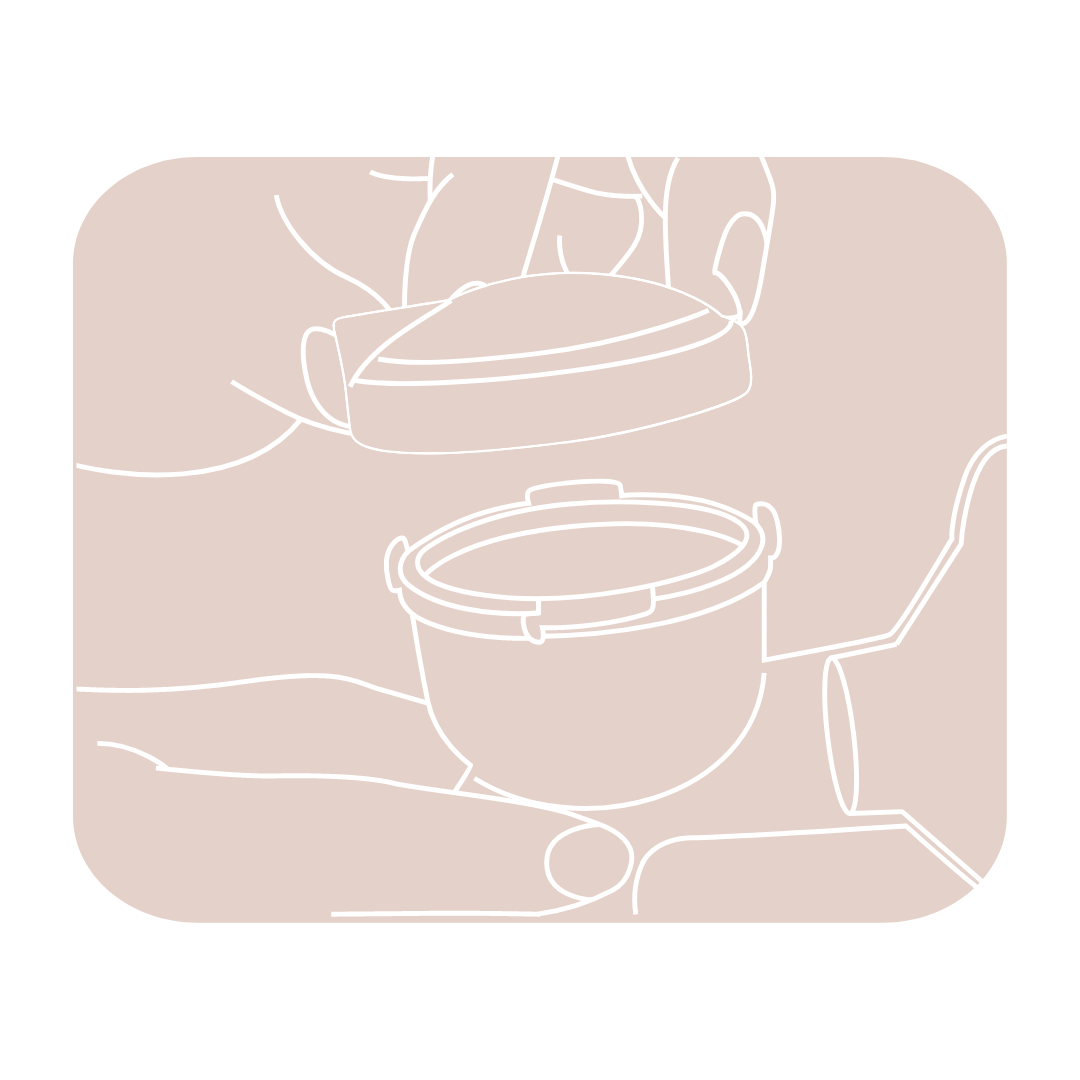

4. Secure the diaphragm cover onto the pump body. Make sure it is firmly attached.

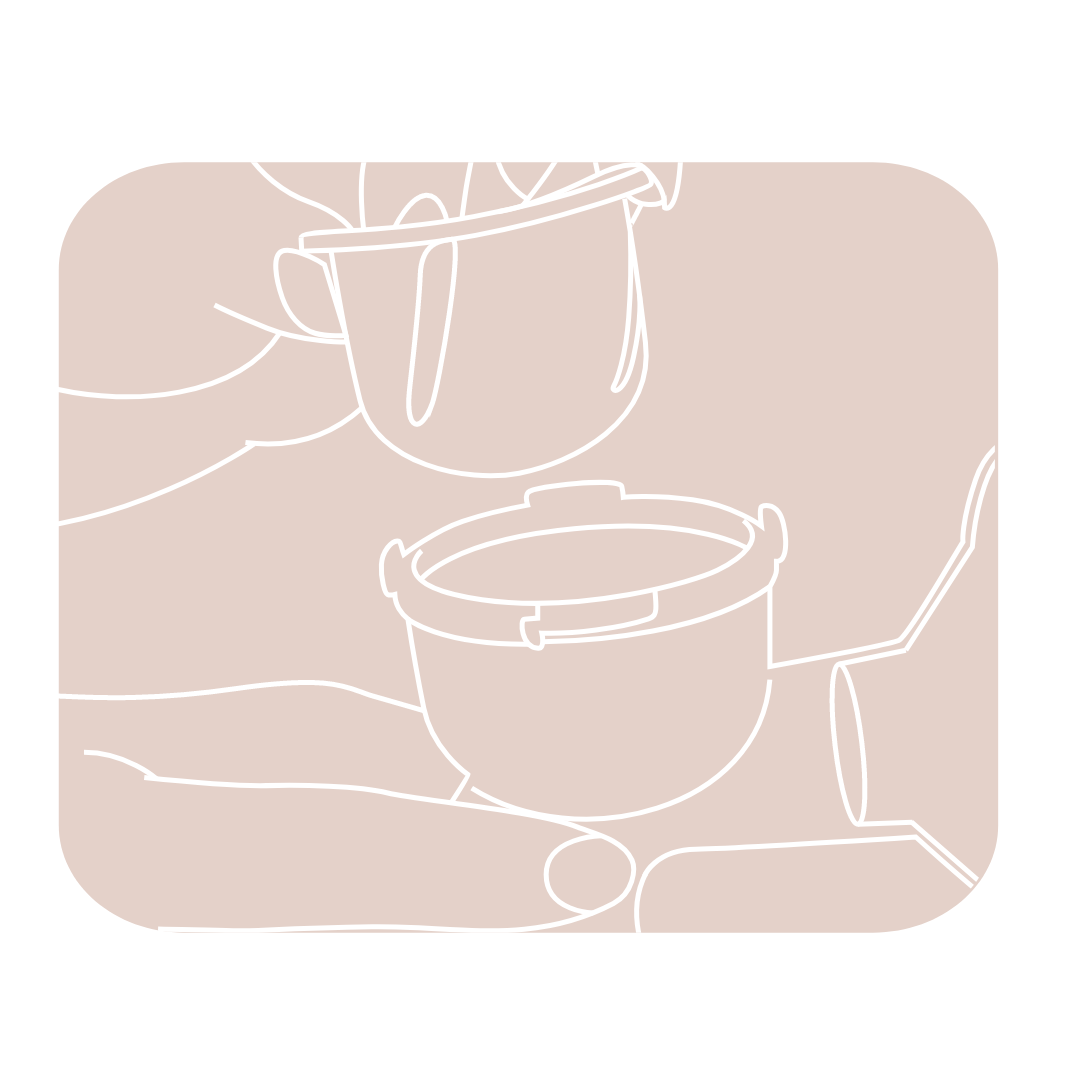

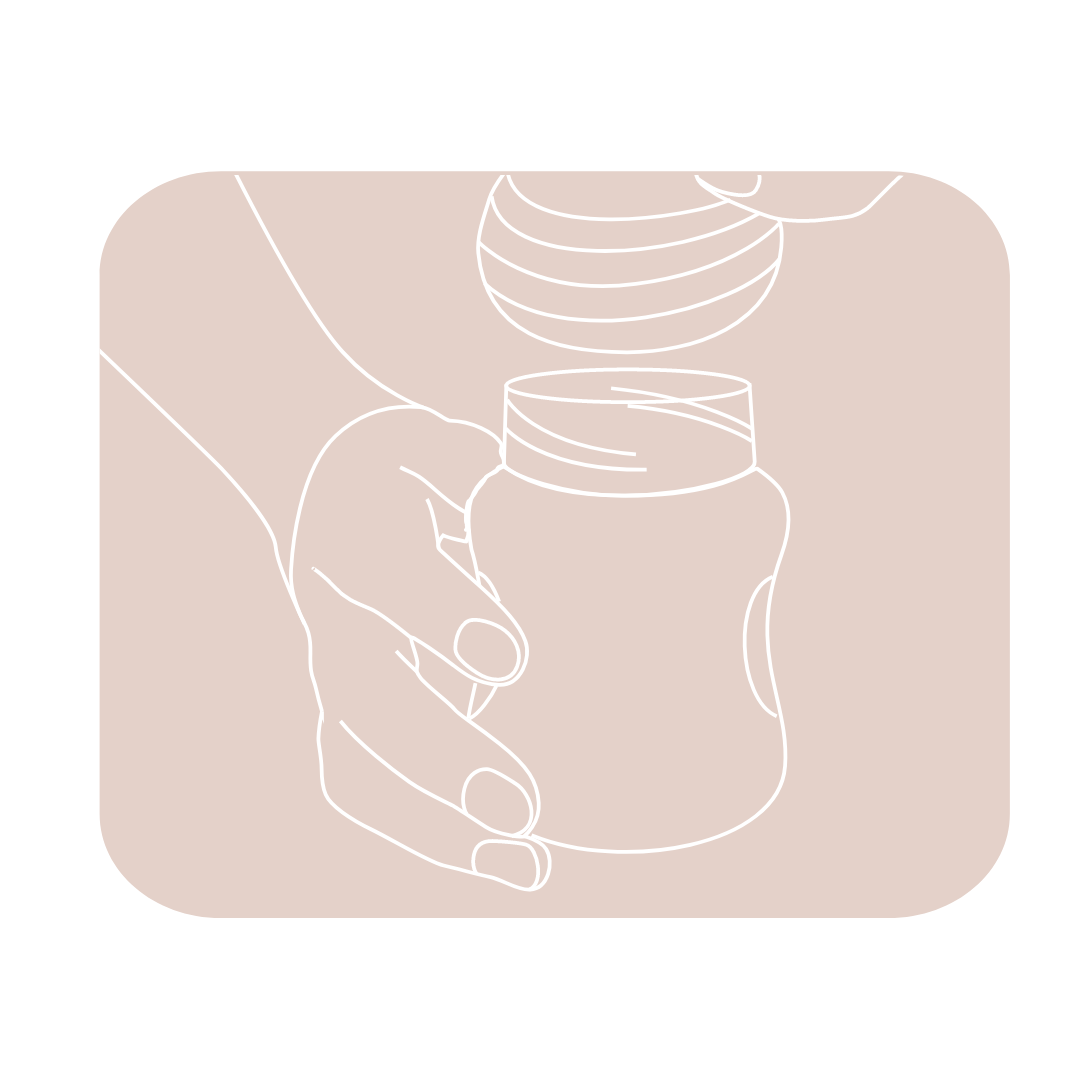

5. Screw the bottle into the pump body

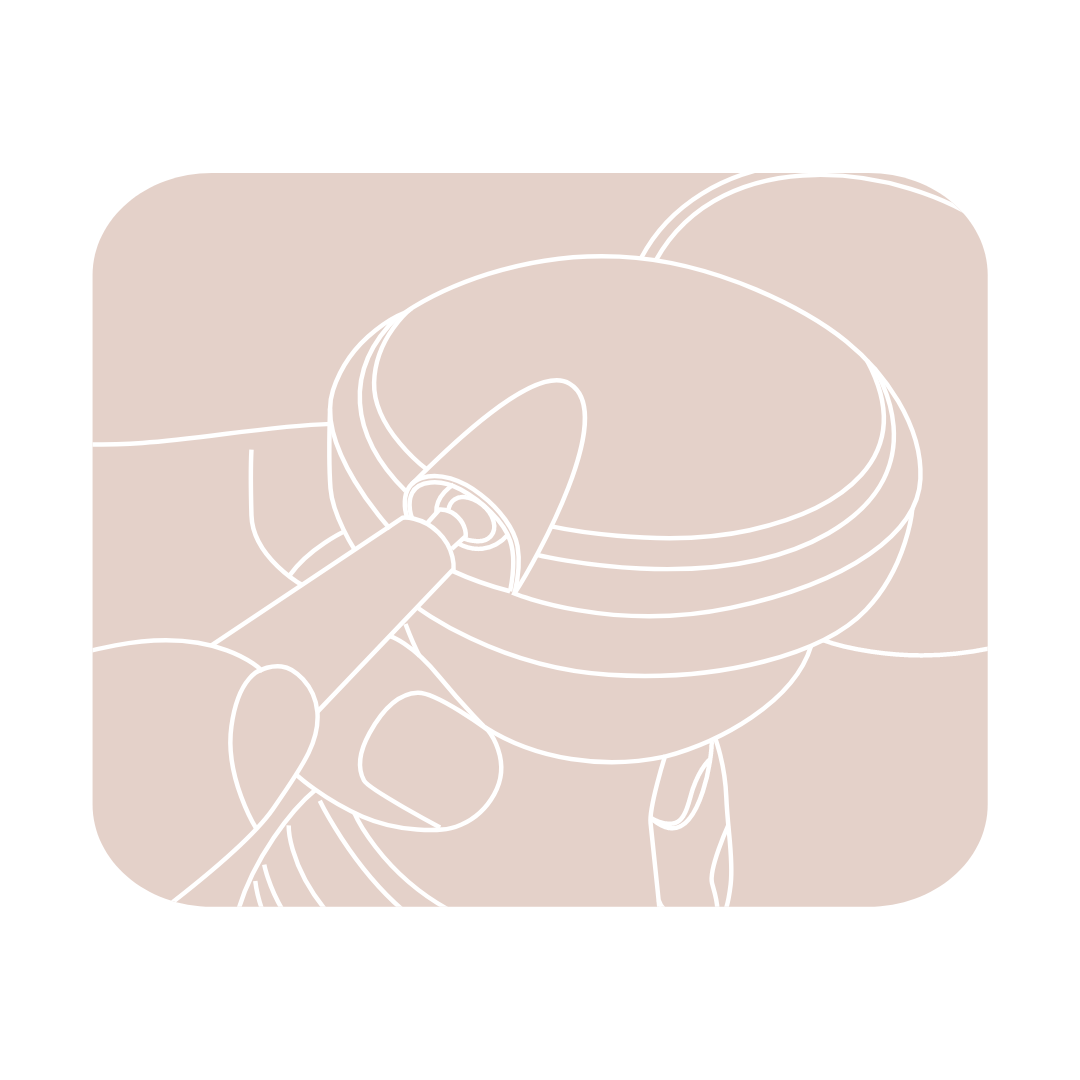

6. Connect tube to the diaphragm cover

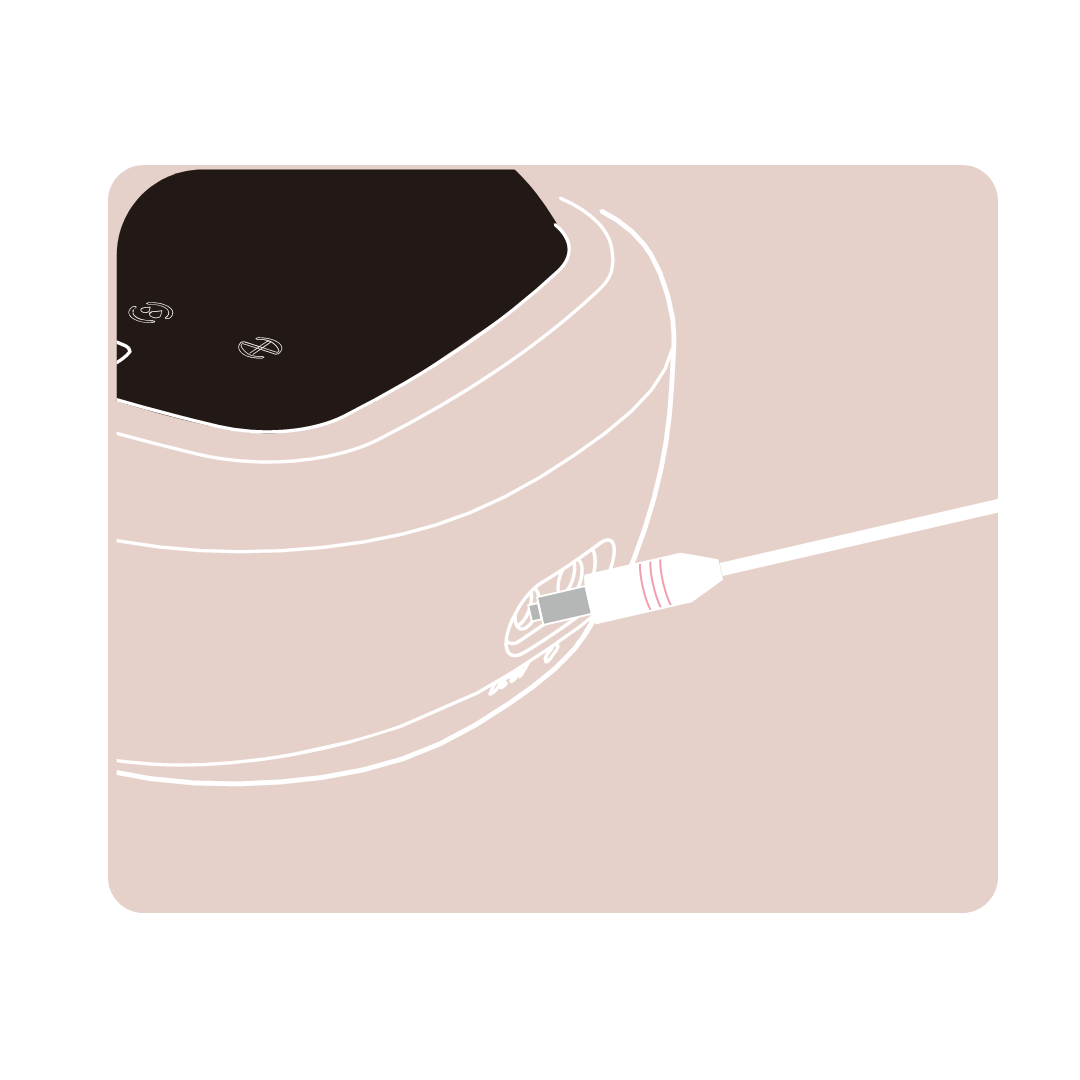

7. Insert the charging cable into the socket and plug the USB connector into the AC Adapter

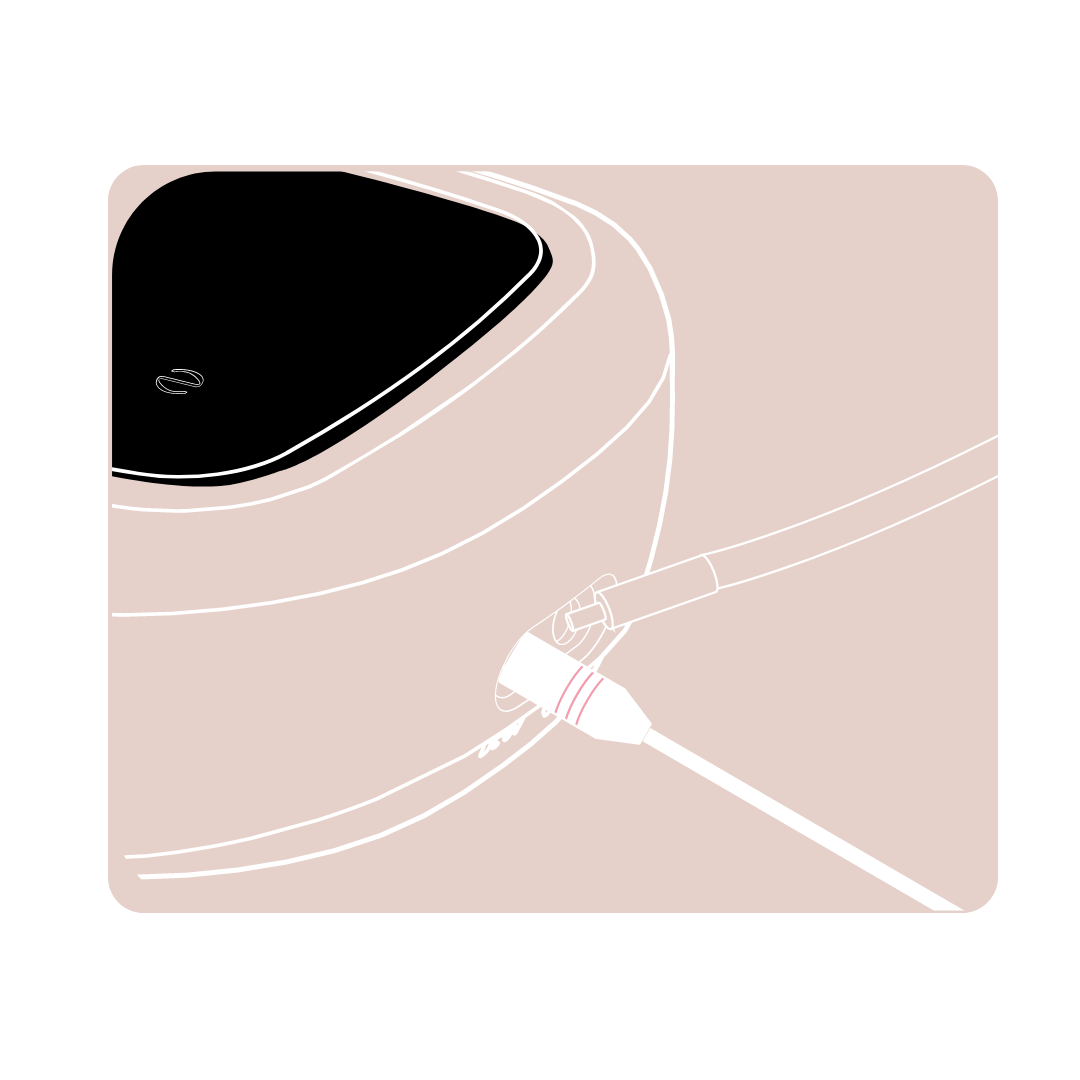

8. Insert the tube connector and tube into the port
9. When using the dock switch in single mode, slide the side selector key to the right or left side of the tubing dock. To use both sides at once, set the key to the middle position.

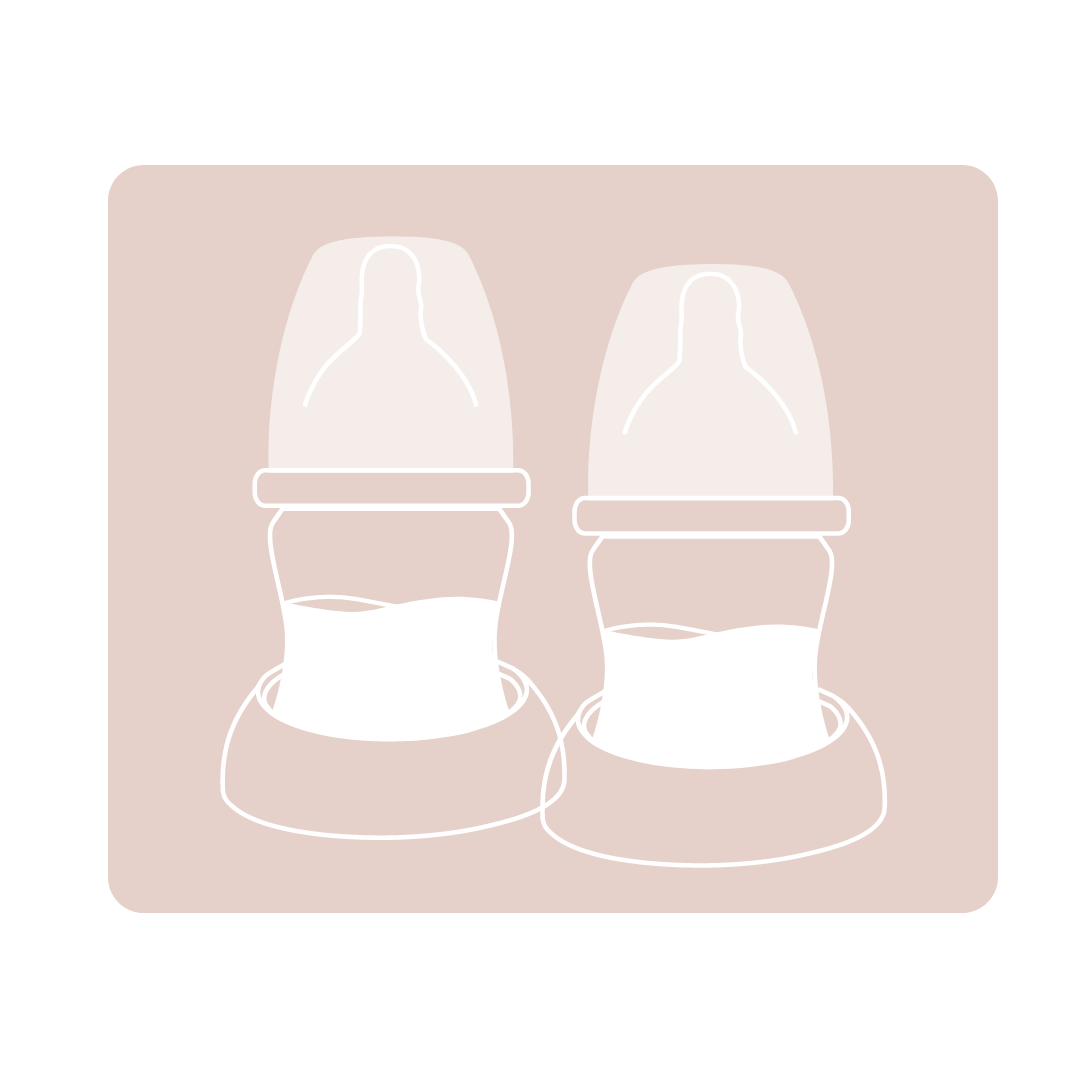

10. When the session is over, store your breast milk in the refrigerator. All components should be cleaned before and after each use. Remember to keep electric parts dry.
How To Assemble Video
Always wash your hands before using your pump. Make sure all parts are clean before use.

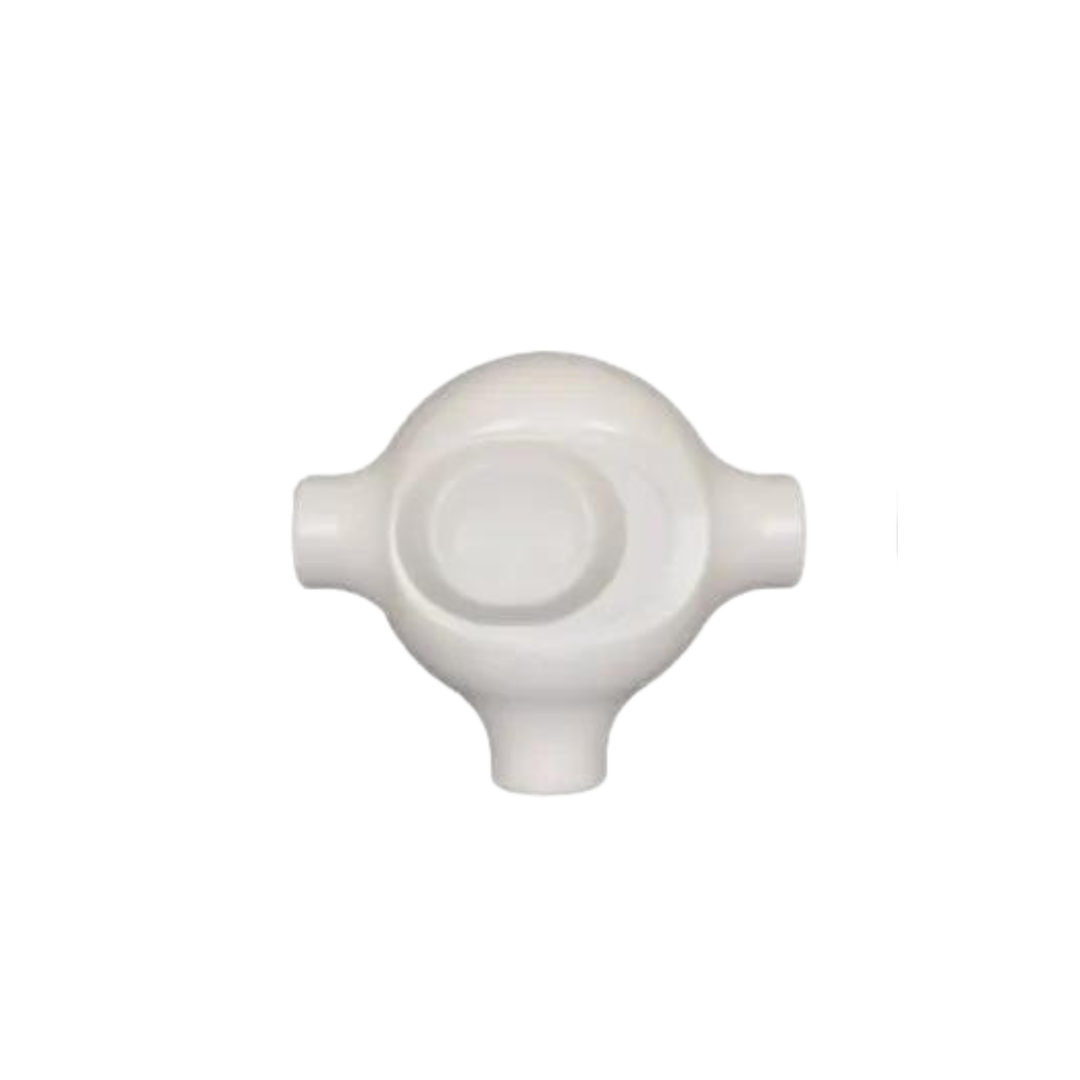

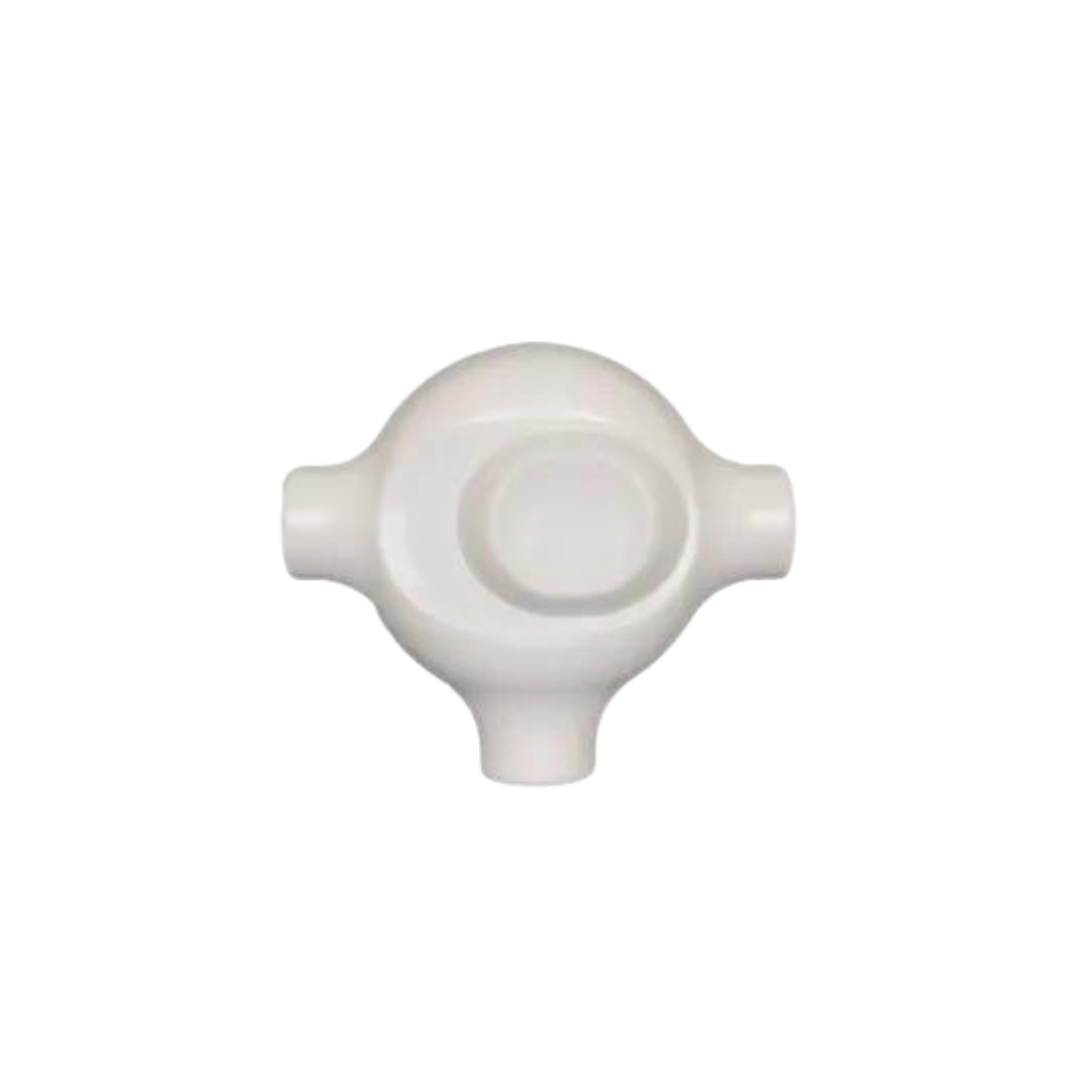

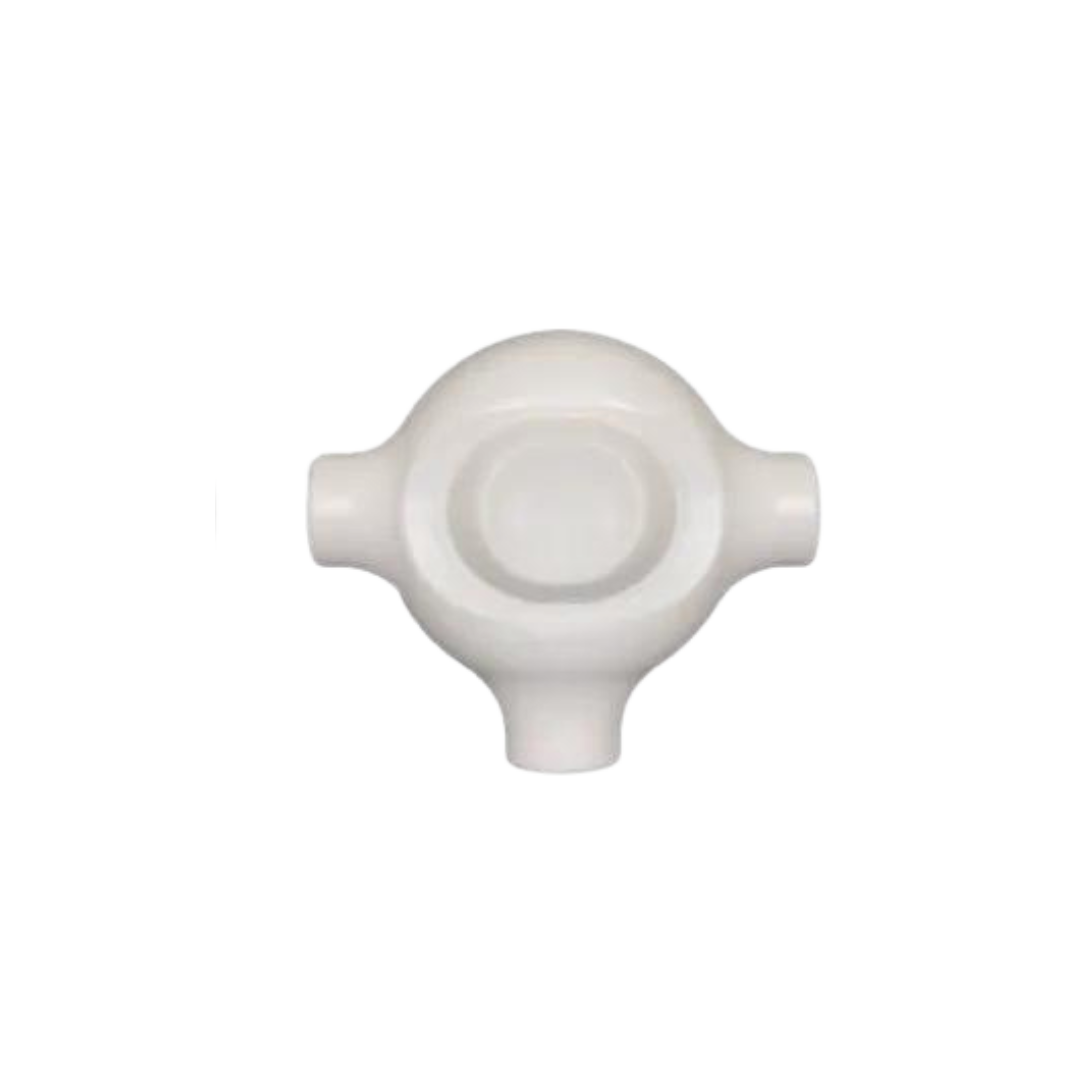

Tubing Dock Switch
Place the switch to the left to only pump on your left breast.
Place the switch in the middle to double pump.
Place the switch to the right to only pump on your right breast.
Single and Double Pumping
You can easily select a side for single pumping, or put the switch to the middle position to use your Zomee in double pumping mode. Just attach the 14" tubes to one side for single pumping or both sides for double pumping.

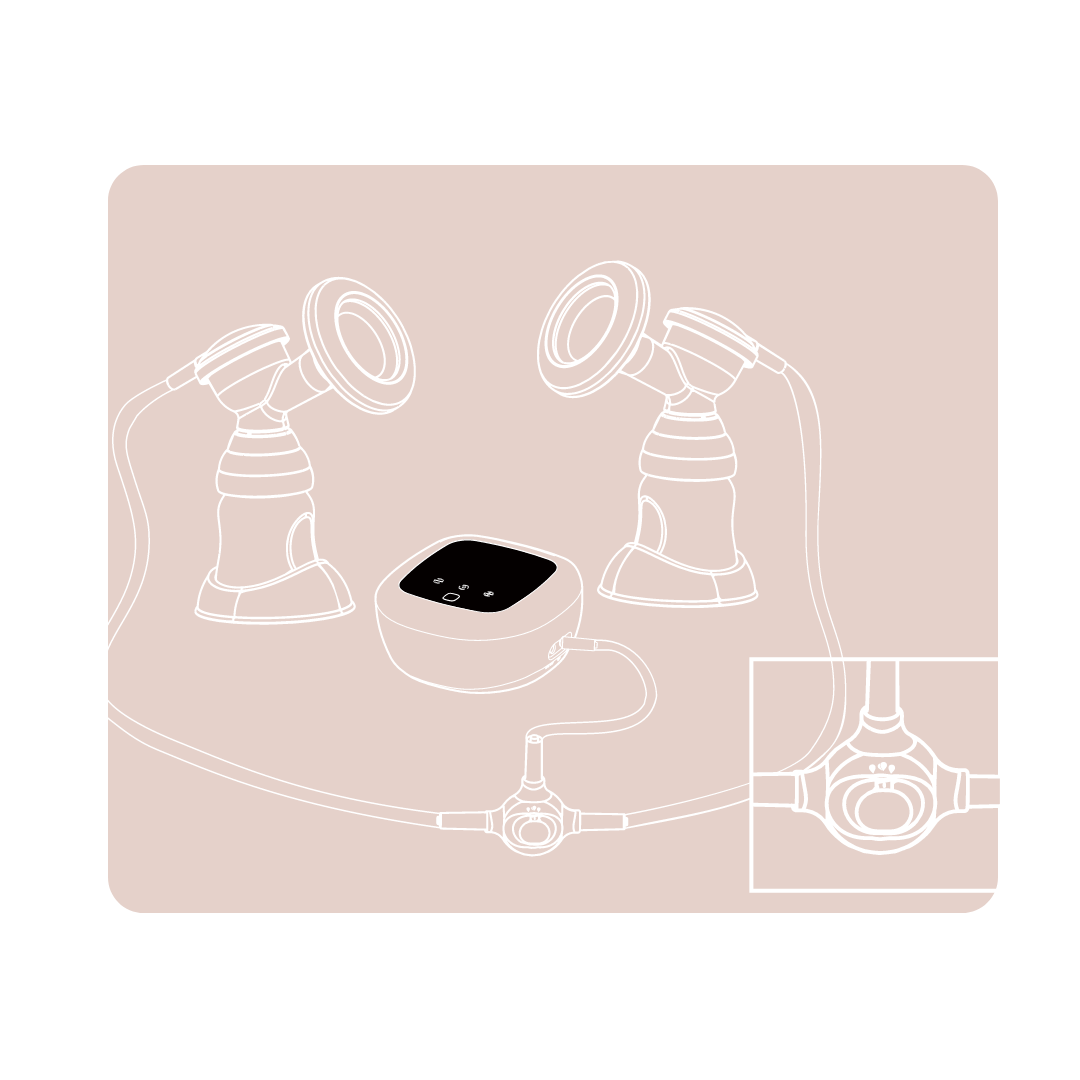

Double Pumping
Make sure you attach the air tubes for both breast shield kits (14" tube) and attach the 26" tube to the Zomee motor base. The tubing dock switch must be in the middle position.
Single Pumping

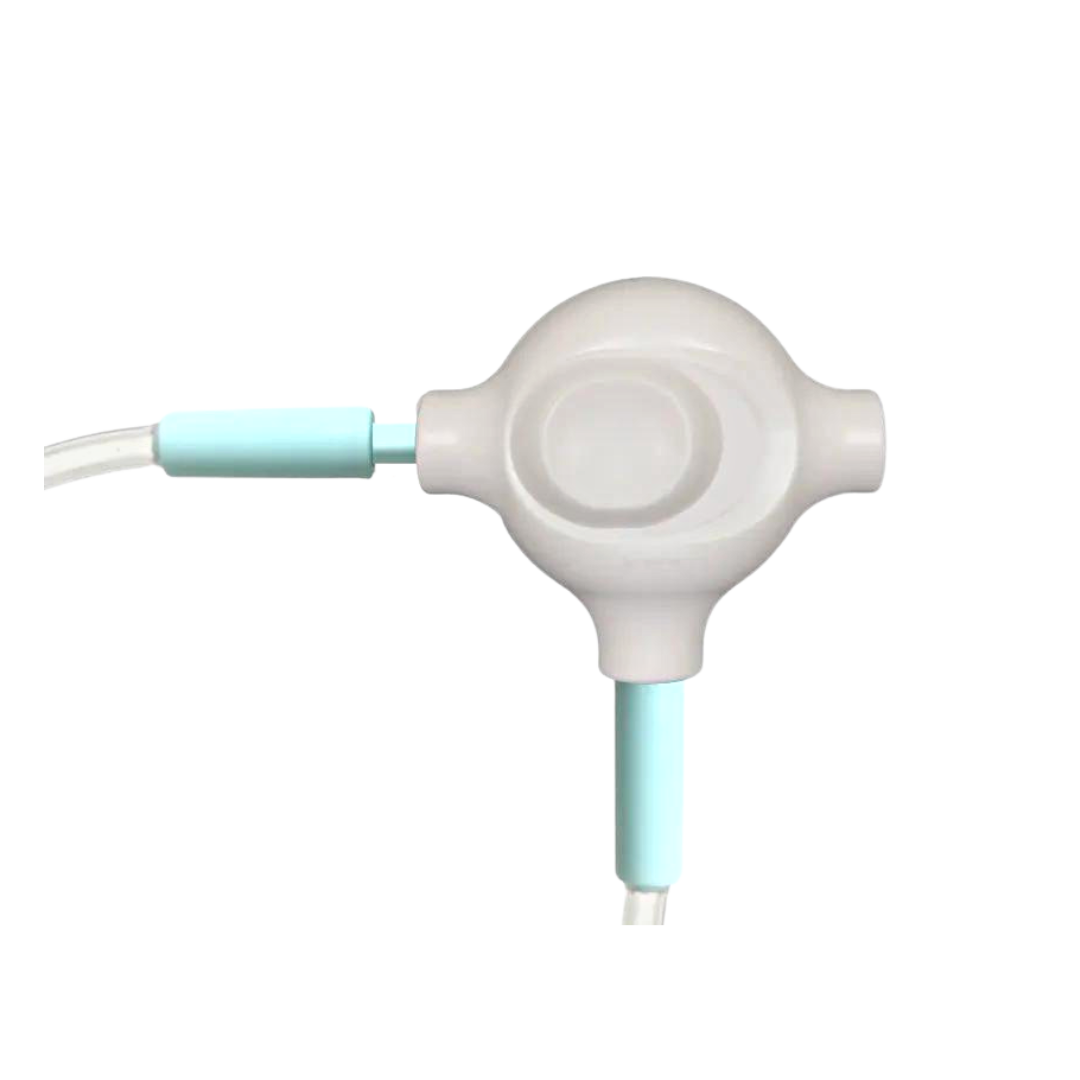

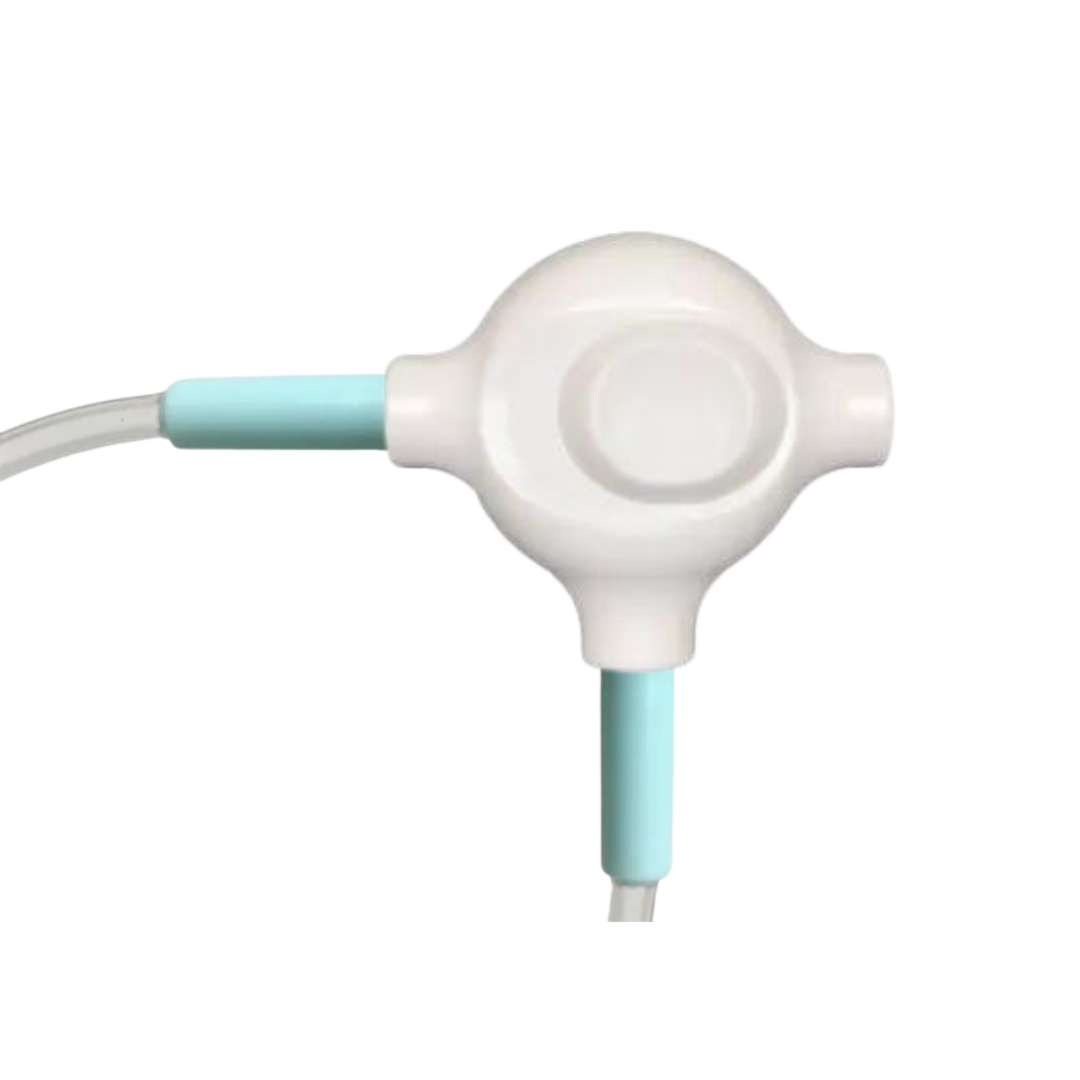

Just attach the 14" tube from the breast shield kit to one of the sides. The tubing dock switch must match the side attached to the tube.
Common Mistakes
Always check that the side selector is in the right position
If you don't match the switch to the side you would like to pump too, the pump is not going to provide any suction.
Make sure that the tubes are fully inserted
If you experience low/no suction with your Zomee always check all parts are assembled correctly.
The tube is not fully connected to the switch dock port.
The switch is not on the same side of the connected tube.
